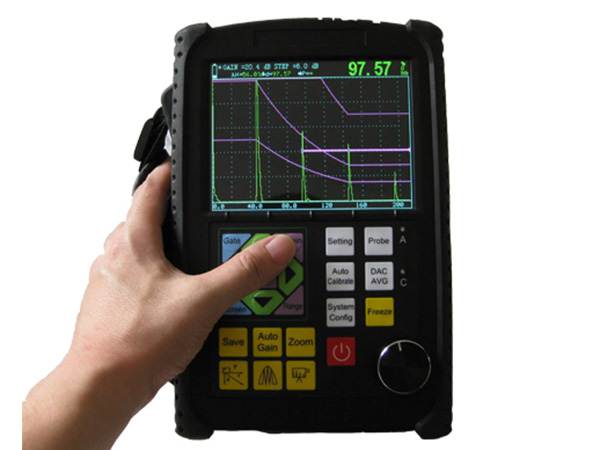

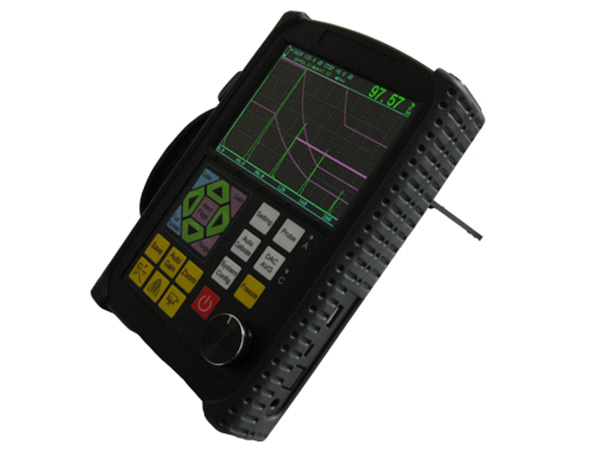

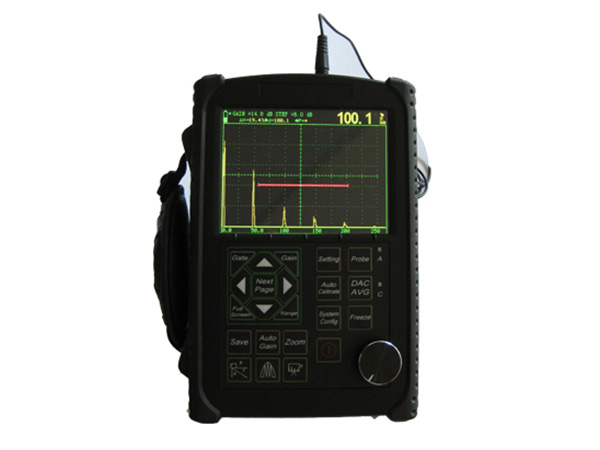

Digital Ultrasonic Flaw Detector GUF500 Plus

Advantages:

*Automated calibration、Automated gain;

*Video making no limitation;

*DAC、AVG、TCG、B scan、AWS 1.1;

*High-speed capture and very low noise;

*Solid metal housing;

*high contrast viewing of the waveform from bright;

*Porofessional PC software and reports can be exported to excel;

Features:

*Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф);

*Automated switch three staff gauge (Depth d、level p、distance s);

*Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;

*Convenient to make and use DAC\TCG and AVG to evaluate the echo, the curve can be modified and compensated 6dB DAC functions;

*500 independence setup, any criterion can be input freely, we can work in the scene without test block;

*Big memory of 1000 A graph

*Automated gain and gain scan;

*Peak Hold and Peak Memory;

*B scan;

*28 DGS curves

*AWS D1.1 standard applied;

*Automated make video of test process and play; use Flash memory，the length of video is unlimited.

*Powerful pc software and reports can be export to excel;

*Li battery, continue working time up to 15 hours;

*The embeded software can be online updated;

*Display freeze;

*Automated echo degree;

*Angles and K-value;

*Lock and unlock function of system parameters;

*Electronic clock calendar ;

*Two gates setting and alarm indication;

*Gate and DAC alarm;
