Ultrasonic Flaw Detector

GUF500

Date:2023-02-20

GUF500-5
GUF500-6
GUF500-2
GUF500-7

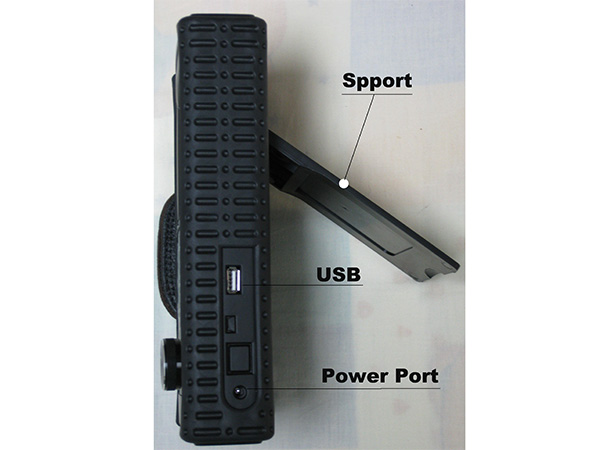

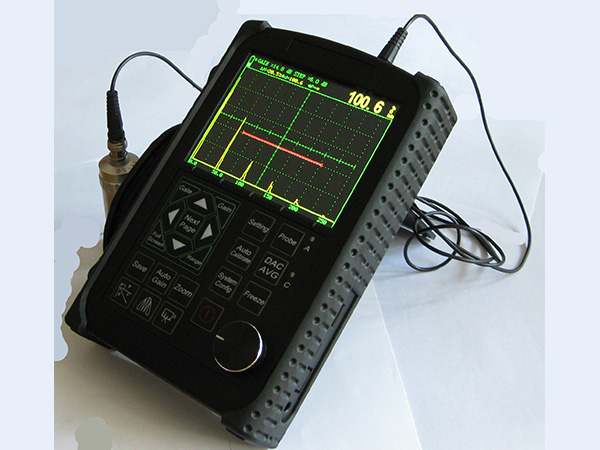

Digital Ultrasonic Flaw Detector GUF500

Advantages:

*Automated calibration、Automated gain;

*Video making no size limitation;

*DAC、AVG、TCG、B scan、AWS 1.1;

*High-speed capture and very low noise;

*Solid meterial housing;

*High contrast viewing of the waveform from bright;

*Powerful pc software and reports can be export to excel;

Features:

*Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф);

*Automated switch three staff gauge ((Depth d、level p、distance s);

*Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;

*Convenient to make and use DAC\TCG and AVG to evaluate the echo, the curve can be modified and compensated

6dB DAC functions;

*500 independence setup, any criterion can be input freely, we can work in the scene without test block;

*Big memory of 1000 A graph

*Automated gain and gain scan;

*Peak Hold and Peak Memory;

*B scan;

*AWS D1.1 standard applied;

*Automated make video of test process and play; use Flash memory,the length of video is unlimited.

*Powerful pc software and reports can be export to excel;

*Li battery, continue working time up to 12 hours;

*The embeded software can be online updated;

*Display freeze;

*Automated echo degree;

*Angles and K-value;

*Lock and unlock function of system parameters;

*Electronic clock calendar ;

*Two gates setting and alarm indication;

*Gate and DAC alarm;

Specifications

TitleParameterTitleParameter
Measuring Range(mm)0 ~  10000Measurement ModeSingle、Dual、Thru
Vertical Linearity Error≤3%Reject0~80%
Horizontal Linearity Error≤0.1%Pulse Displacement(μs)-20 ~  +3400
Sensitivity Leavings≥62dBZero(μs)0.0 ~  99.99
Dynamic range≥34dBPort TypeBNC(Q9)
Resolving Power≥36dBOperating Temperature  (℃)-20~50
Frequency Range(MHz)0.5 ~  20H×W×D(mm)240×156×50
Gain(dB)0 ~  120Weight(kg)1.0(with battery)
Material Velocity(m/s)1000 ~  15000

Delivery:

No.ItemQuantity
1Main Body1
2Straight Beam Probe1
3Angle Probe1
5Machine-probe Cable (Q9-Q9)1
6Battery Module1
7Power Adapter (Charger)1
8Support Pillar1
9Manual1
10Instrument Case1
11Data pro Software (Optional)1
12USB communication Cable1
