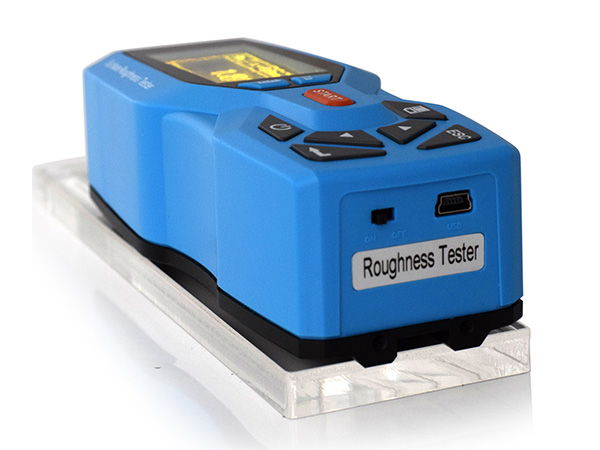

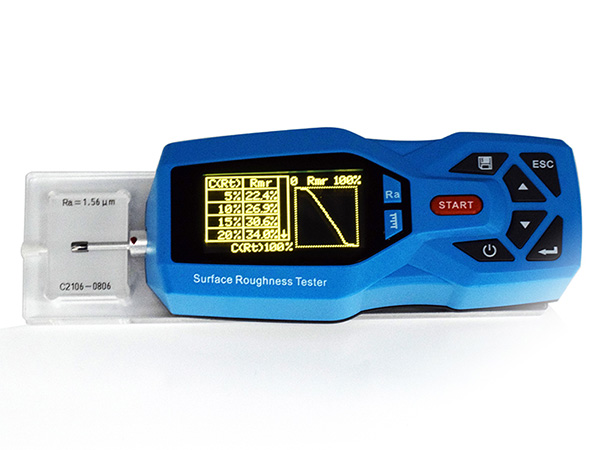

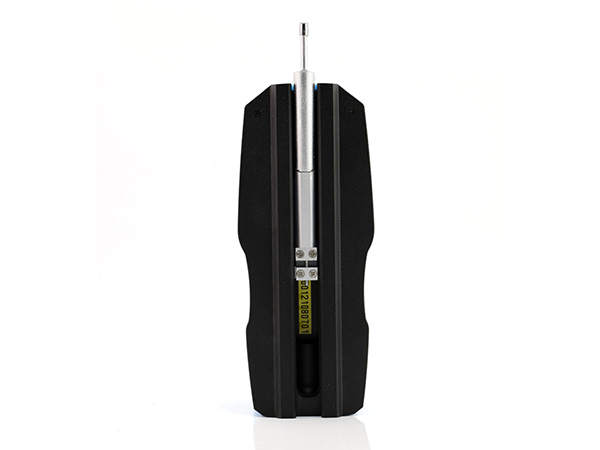

GR290 Surface Roughness Tester

MAIN FEATURE

*Stylish design with plastic shell, inspired by “TRANSFORMERS”;

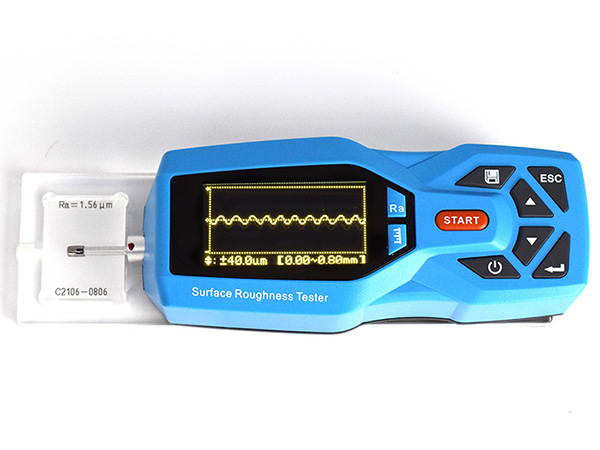

*Visual waveform display;

*Electromechanical integration design, small volume, light weight, easy to use;

*Using DSP chip to control and data processing, high speed, low power consumption;

*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

*Intuitive and rich display information, can display all the parameters and graphics;

*Compatible with ISO, DIN, ANSI, JIS national standards;

*Residual quantity icon, prompting the user to charge;

*Continuous working time: more than 20 hours;

*Real-time clock settings and display, convenient data recording and storage;

*With automatic dormancy, automatic shutdown and power saving function;

*Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.

*With PC software, can be connected to a computer and printer;

*Optional different sensor, measuring platform, mini printer, extension rod and other accessories;

*Support OEM Service, high price performance.

TECHNICAL DATA

14 Testing ParametersRa, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx,
Measuring RangeRa: 0.005~16.000μm   Rz: 0.02~160.00μm
Sample Length0.25, 0.80, 2.50mm
Evaluation Length(1~5)L
Maximum Drive Stroke17.5mm/0.7inch
Indication Accuracy0.001μm
Indication Error≤(±10)%
Variability<6%
Data Storage100 groups
PowerRechargeable Li-battery
Relative Humidity<90%
Working Temperature-20°C~40°C
Size158x63.5x46mm
Weight of Host0.3kg

STANDARD DELIVERY

ITEMQTY
GR290 Host 1 PC
Standard Sensor1 PC
Standard Calibration Block1 PC
Bracket for Calibration Block1 PC
Adjustable Support1 PC
Power Charger1 PC
USB Cable1 PC
PC Software1 PC
User manual1 PC
Instrument case1 PC
Warranty2 Years

RELATED OPTIONAL ITEMS

ImageDescription

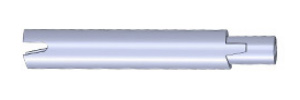

 01Extending Rod, extending rod increases the depth for pickup to enter the part. Length of extending rod is 50mm.

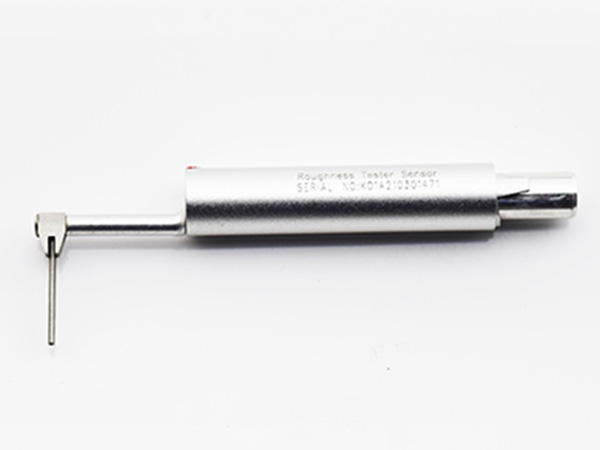

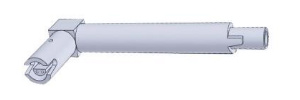

 02Right Angle Rod, change the position of the sensor, mostly use for measure surface of particular groove.

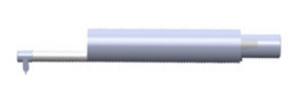

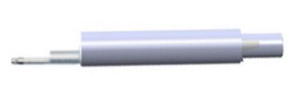

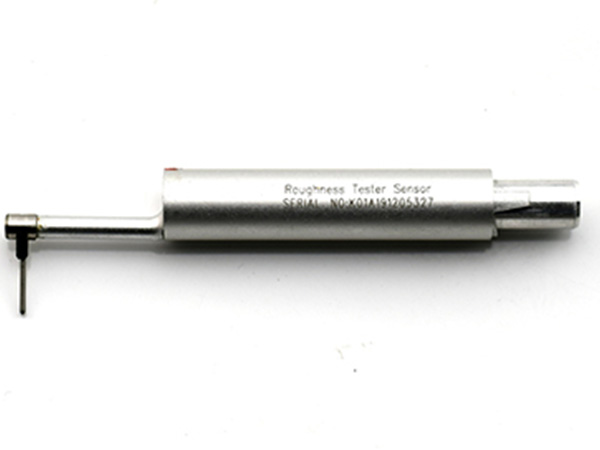

 03Standard Sensor,to measure most of the plane, inclined plane, cone surface, inner hole, groove and other surface roughness, in addition to the standard sensor, other special sensors are needed to measure the measuring platform.

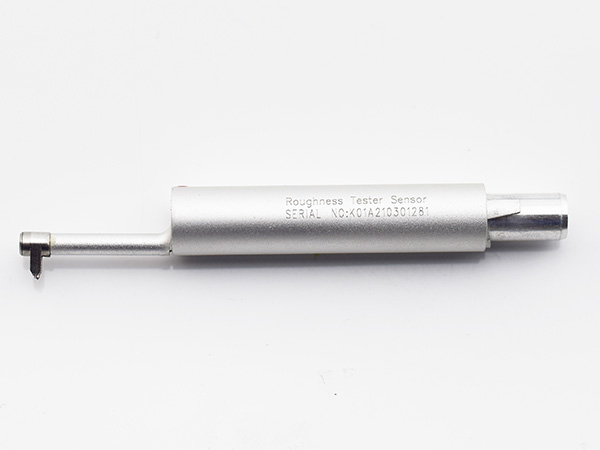

 04Curved Surface Sensor, to measure smooth cylindrical surface which radius is larger than 3mm, for the large radius smooth spherical surface and other surface also can obtain good approximation, need to work with platform KA520 or KA620.

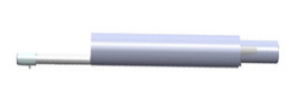

 05Small holeSensor, to measure the inner surfaces of holes with radius more than 2mm, better to work with platform KA520 or KA620.

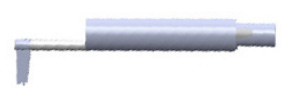

 06Deep Groove Sensor,measure groove with width wider than 3mm and depth deeper than 10mm, or the surface roughness of step with height less than 10mm, also can used to measure the planar, cylindrical used with platform, better to work with platform KA520 or KA620.

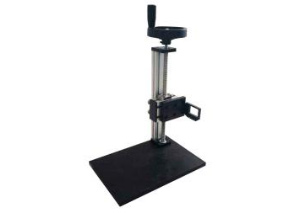

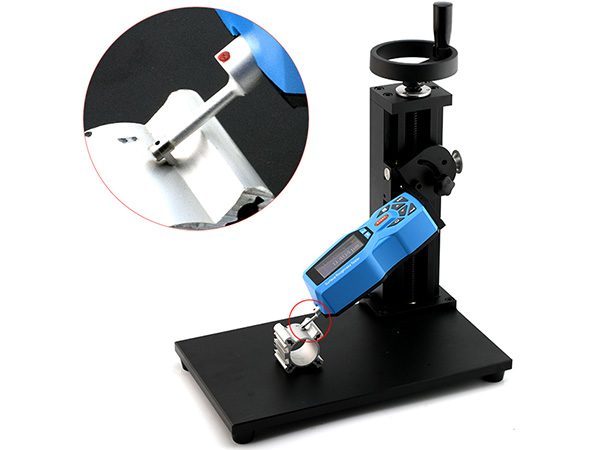

 07KA520 -Metal Substrate Working platform, adjustable height 200mm.
With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended.

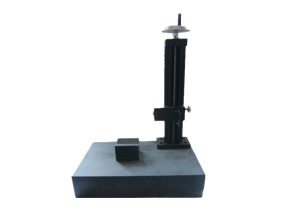

 08KA620 -Marble Substrate Working Platform, adjustable height 300mm.
With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended.

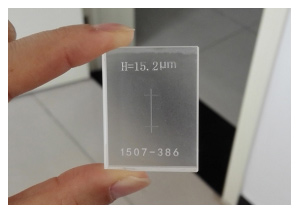

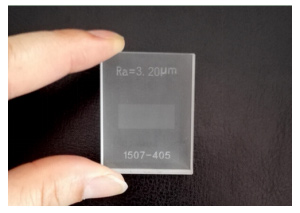

 09Standard Roughness Calibration BlockMulti-engraved lines (Square Wave)
Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.
Meet standard GB/T19067.1-2003 and ISO5436-1:2000
Approximation: Ra=0.1um, 0.2um, 0.4um,  0.8um, 1.6um, 3.2um, 6.4um
Customized Value and Sine Wave available, welcome to inquire.
 10Standard Roughness Calibration BlockSingleengraved lines
Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.
Meet standard GB/T19067.1-2003 and ISO5436-1:2000
Approximation: Ra=0.1um, 0.2um, 0.4um,  0.8um, 1.6um, 3.2um, 6.4um)
Customized Value available, welcome to inquire.

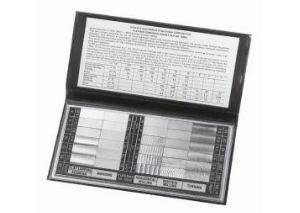

 11Roughness Comparator  (30 pcs/set)
This set contains standards of the six most important machining methods in the prevalent "AA" values. These surface roughnesses are used to compare and determine the degree of the surface finish by comparison method and eye estimation or magnifying glass. The surface rough contrast blocks is made of 45 super carbon steel except the GCr15 which is using to plat lapping the sample block. All 30 specimens are calibrated in u''AA (Arithmetical Average) and in the metric equivalents um Ra.

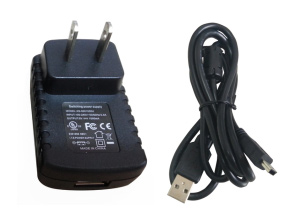

 12Charge and Cable for Surface Roughness Tester
Charger: US and EU standard optional
Cable: USB interface

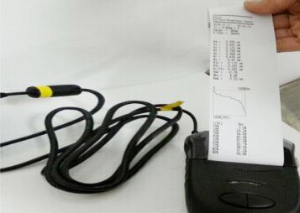

 13Mini thermal printer
External printer, connect by USB interface, suitable for Galaxy models.

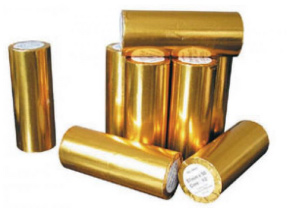

 14Thermal printing paper
Suitable for mini thermal printer and Galaxy’s built-in printer
Packing: 10pcs/bag
