Vibration Meter
GV120
Date：2023-02-20

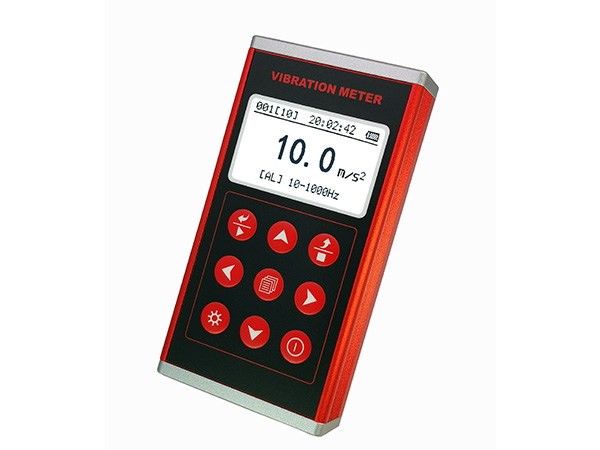

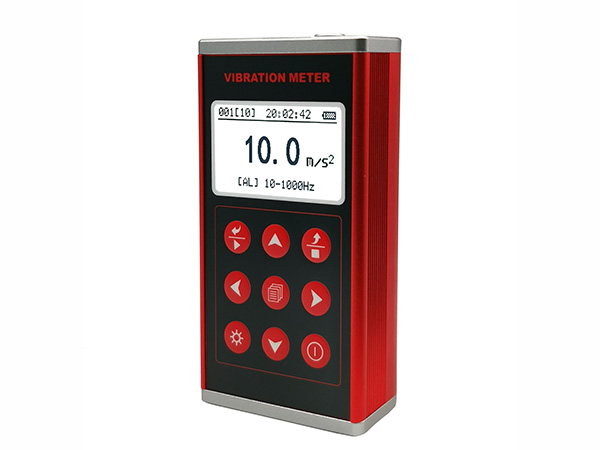

GV120 Portable Vibration Meter
[Introduction]
GV120 portable vibration meter is suitable for routine vibration measurement, especially in reciprocating machinery vibration measurements. It can not only measure the vibration acceleration, velocity or displacement, but also for rotational speed measuring.
This product use optimized-filtering method to ensure stable and accurate measurement indication in multi-interference measurements environment. And the product of smart appearance, white backlit display is easy to use in complex environment.
[Features]
*Metal Cover.
*White backlight for better operation in the dark.
*It is suitable for acceleration Peak data, velocity RMS data and Displacement Peak-Peak data measurement. It also provides measurements histogram in real time.
*Low-pass Filter can be set by users.
*Storage up to 100 points (10 data per point), a total of 1000 data and time.
*Warning limit can be preset. Alarm when the measuring value exceeds the warning limit.

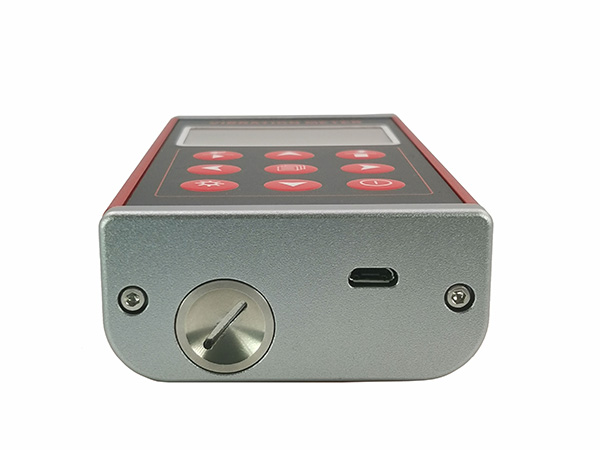

*USB Communication with PC.
| Standard Delivery | NO. | Item | Quantity |
| 1 | Main uni. | 1 | |
| 2 | Alkaline battery AA | 2 | |

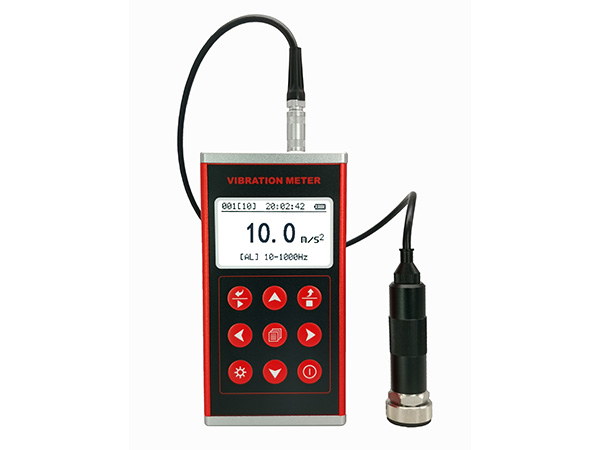

| 4 | Piezoelectric sensors | 1 | |

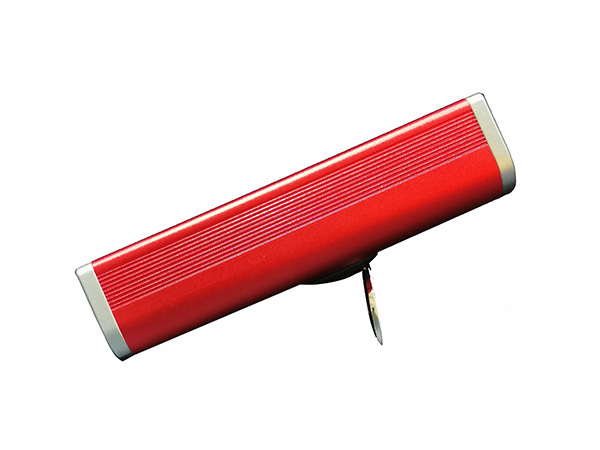

| 5 | Magnetic seat (with 2 bolts) | 1 | |
| 6 | Manual | 1 | |
| 7 | Product Packaging | 1 set | |
| Optional Accessories | 9 | Communication cable | 1 |
| 11 | Probe | 1 |
[Technical Specification]
| GV120 | |
| Testing range | Acce: 0.1 m/s2 ~ 199.9 m/s2(peak) Velo: 0.01 cm /s ~ 19.99cm /s(RMS) Disp: 0.001mm ~ 1.999mm(peak-peak) |
| Freq range | Acce: 10Hz ~ 10kHz Velo: 10Hz ~ 1kHz Disp: 10Hz ~ 500Hz |
| Tolerance | ±5% |
| Speed measuring range | 30 ~ 60000 rpm corresponding to 0.5 ~ 1000Hz |
| Measuring distance | 0.15 ~ 1m |
| Temp | 0℃ ~ 40℃ |
| Display | LCD,128×64 pixels with LED backlight |
| Data memory | 10×100 |
| Limit alarm | Yes(Beep) |
| Data(External portable printer) | |
| Battery | AA x2 battery |
| Continuous working time | About 100h(without backlight) |
| Software | Yes |
| Low-pass filter | Yes(User can set the cut-off frequency freely) |
The product especially have excellent accuracy and stability when used in high-frequency vibration spindle object (such as spindle CNC machine tools, woodworking motor, etc.) .
