Vibration Meter
GV300
Date：2023-02-20

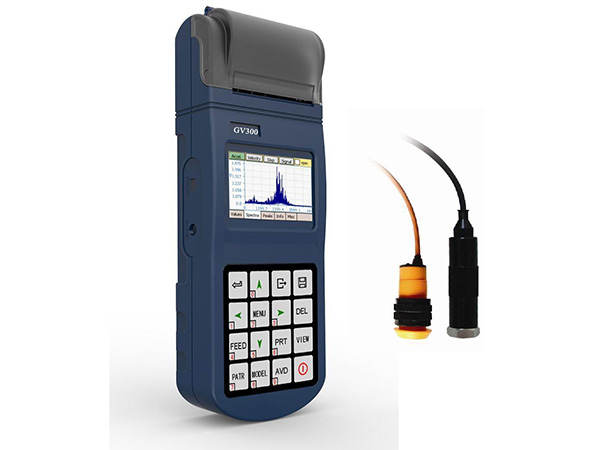

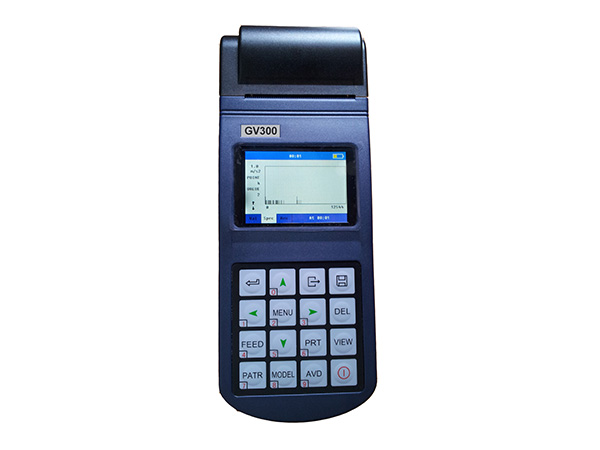

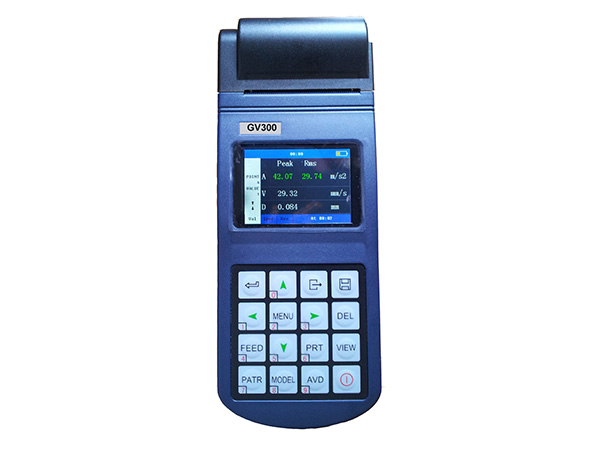

Portable Vibration Meter GV300
[Introduction]
GV300 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also for rotational speed measuring.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
The technical specifications of GV300 comply with the requirements of GB 13823.3. GV300 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
[Delivery]
| Standard Delivery | NO. | Item | Quantity |
| 1 | Main unit. | 1 | |
| 2 | Power Adapters | 1 | |
| 3 | Piezoelectric sensors | 1 | |
| 4 | Magnetic seat (with 2 bolts) | 1 | |
| 5 | Manual | 1 | |
| 6 | Communication cable | 1 | |
| 7 | Package case | 1 | |
| Optional Accessories | 8 | Speed transducer (Lacer) | 1 |
| 9 | Probe | 1 | |
| 10 | Software | 1 |
[Specifications]
| Testing range | Acce: 0.1 m/s2 ~ 392.0 m/s2(peak) Velo: 0.01 cm /s ~ 80.00cm /s(RMS) Disp: 0.001mm ~ 18.1 mm(peak-peak) |
| Freq range | Acceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz, 10Hz ~ 1KHz, 10Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz |
| Frequency resolution | 0.25Hz |
| Data memory | 25×62 pieces of data and 25 spectrums |

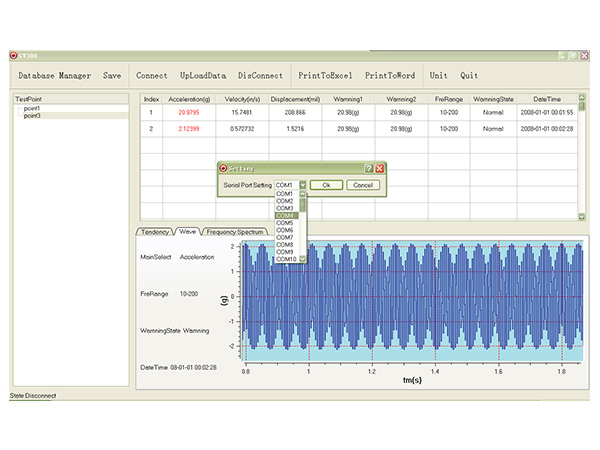

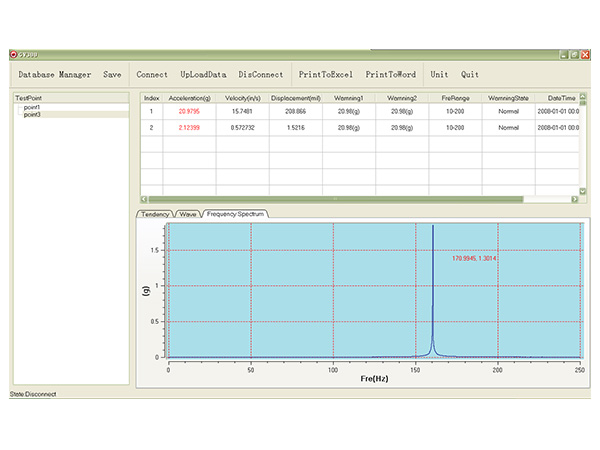

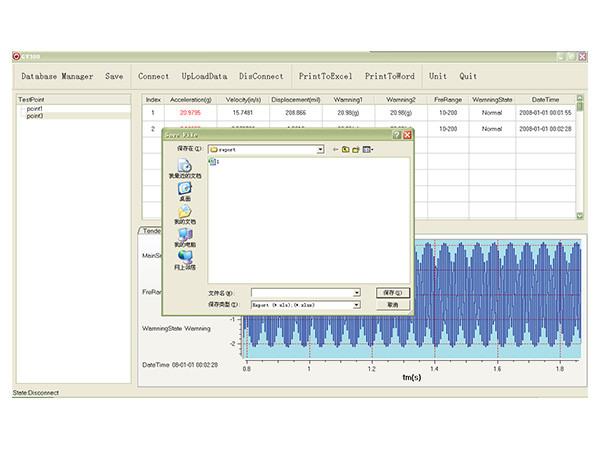

| Software | Yes |
| Temp | 0℃ ~ 40℃ |
| Tolerance | ±5% |
| Speed measuring range | 30 ~ 60000 rpm corresponding to 0.5 ~ 1000Hz |
| Measuring distance | 0.15 ~ 1m |
| Display | TFT 320×200 pixels with RGB |
| Data interface | USB |
| Overall dimensions | 212×80×35 |
| Printer | Integrated thermal |
| Weight | 320g |
| Battery | Rechargeable Li battery,1800mAh |
| Continuous working time | About 50h |
